Dell Optiplex 7020, 14th generation CI3, 8gb, 512 SSD

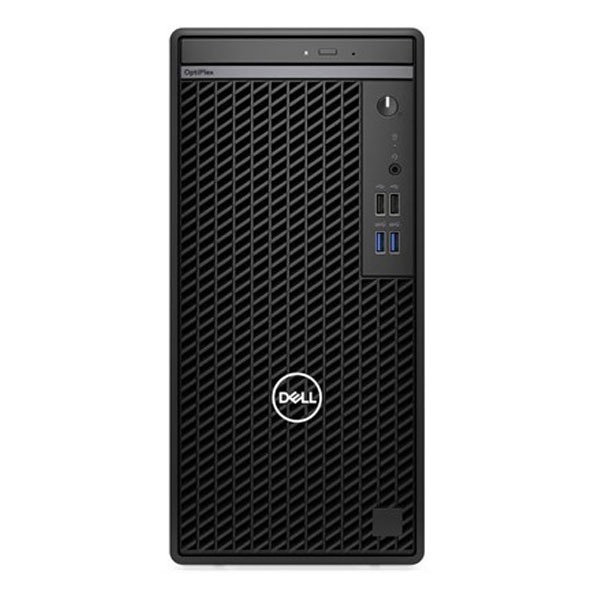

Dell OptiPlex 7020 – 14th‑Gen Core i3‑14100, 8 GB, 512 GB SSD

Processor & Chipset

• Intel Core i3‑14100 (14th Gen)

  • 4 cores, 8 threads

  • Base clock ~3.5 GHz, Turbo up to ~4.7 GHz

  • 12 MB SmartCache

• Chipset: Intel Q670

Memory

• 8 GB DDR5 RAM (1 × 8 GB, ~5600 MT/s)

• Two DIMM slots; upgradable up to ~64 GB

Storage

• 512 GB PCIe NVMe SSD (M.2 2230/2280, Gen 4, Class 25)

Graphics

• Integrated Intel UHD Graphics 730

Audio

• High‑Definition Audio codec with built‑in Dell business speaker

Networking & Wireless

• Gigabit Ethernet (RJ45)

• Optional Wi‑Fi 6E and Bluetooth via M.2 module (market dependent)

I/O Ports

Front Panel:

• USB 3.2 Gen 1 Type‑C (5 Gbps)

• USB 3.2 Gen 1 Type‑A (5 Gbps)

• 2 × USB 2.0

• Universal 3.5 mm audio jack (headset/mic combo)

Rear Panel:

• 2 × USB 2.0 ports (SmartPower On)

• 2 × USB 3.2 Gen 1 ports

• HDMI 1.4b

• DisplayPort 1.4a

• RJ‑45 Ethernet

Expansion & Slots

• Tower/SFF: 3 × SATA 3.0 slots

• PCIe (full-height):

  • 1 × Gen 3 x16

  • 2 × Gen 3 x1

• M.2 slots:

  • 2230 for SSD or optional Wi‑Fi/Bluetooth

  • 2280 also supported for SSD

Power Supply

• 180W, 80 PLUS Bronze PSU

Physical Specs

• Tower / SFF form: approx. 324 × 154 × 292 mm; weight approx. 5.2–6.4 kg

Included Accessories

• Dell wired keyboard (KB216) and wired optical mouse (MS116)

Operating System

• Ships with FreeDOS (user installs preferred OS; Windows 11 supported)

Warranty

• 1‑Year limited hardware warranty
